NAYY,NAYY-J,NAYY-O,0.6/1kv Aluminium Underground Cable with PVC Insulation PVC sheath Power Cable
NAYY,NAYY-J,NAYY-O (0.6/1kv Aluminium Underground Cable with PVC Insulation PVC sheath Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Kabel NAYY Application :
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains.For fixed installation underground, in interior premises, cable ducts, in the open air, in water – as permitted by the local building regulation – if no risk of any mechanical damages is to be expected.

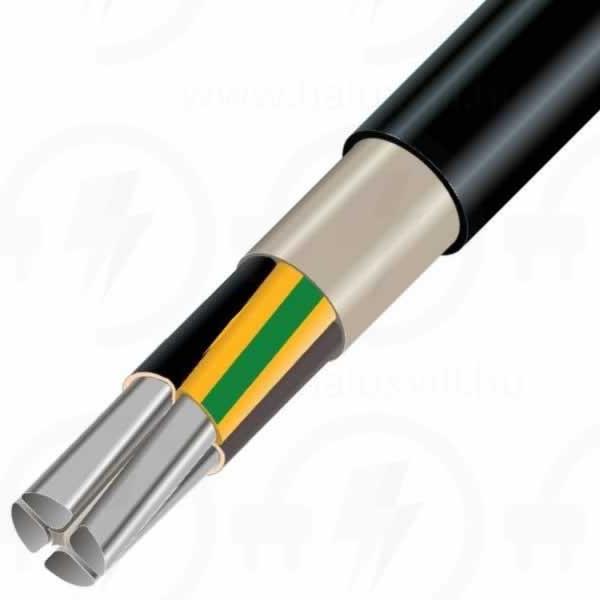

NAYY cable Construction:
1. Aluminium conductor, round solid (RE), sector-shaped solid (SE) round stranded (RM) resp. sector-shaped stranded (SM)
2. Core insulation (PVC)
3 .Sheath (PVC black, UV-resistant)
| Technical Data | |
| Rated voltage: | 0.6/1 kv |
| Test voltage: | 4/50 kV/Hz |
| Laying temperature: | min. -5°C |
| Operating temperature: | -50 up to +70°C |
| Conductor temperature: | max. +70 °C |
| Short-circuit temperature: | max. +160 /5°C/s |
| Core identification: | HD 308 S2 |
| Fire properties: | flame retardant acc. to EN 60332-1-2 |
| Bending radius (mind.): | 15mm× Ø of cable (single-core) and 12mmx Ø of cable (multi-core) |
| Certificate: | CE certification cable |
Technical Parameter:
| Wire gauge | Number and cross-sectional area of conductor
N x mm² | Conductor type | Nominal outside diameter
mm | The weight of aluminum
kg/km | Nominal cable weight
kg/km |
| NAYY-O |
| 4 | 1 x 25.0 | re | 12.2 | 70 | 190 |
| 2 | 1 x 35.0 | re | 13.1 | 97 | 229 |
| 1 | 1 x 50.0 | re | 14.5 | 131 | 288 |
| 1 | 1 x 50.0 | rm | 15.4 | 135 | 303 |
| 2/0 | 1 x 70.0 | rm | 17.1 | 195 | 385 |
| 3/0 | 1 x 95.0 | rm | 19.3 | 270 | 499 |
| 4/0 | 1 x 120.0 | rm | 20.8 | 341 | 589 |
| 300mcm | 1 x 150.0 | rm | 22.6 | 419 | 705 |
| 350mcm | 1 x 185.0 | rm | 24.9 | 526 | 862 |
| 500mcm | 1 x 240.0 | rm | 27.7 | 690 | 1083 |
| 750mcm | 1 x 300.0 | rm | 30.6 | 863 | 1325 |
| - | 1 x 400.0 | rm | 34.0 | 1109 | 1657 |
| - | 1 x 500.0 | rm | 38.0 | 1461 | 2172 |
| 4 | 2 x 25.0 | re | 22.4 | 140 | 685 |
| 2 | 2x 35.0 | re | 24.3 | 194 | 826 |
| 2 | 2 x 35.0 | rm | 25.4 | 199 | 880 |
| 1 | 2 x 50.0 | re | 27.3 | 261 | 1049 |
| 1 | 2 x 50.0 | rm | 29.1 | 269 | 1155 |
| 2/0 | 2 x 70.0 | rm | 33.1 | 390 | 1447 |
| 3/0 | 2 x 95.0 | rm | 37.9 | 539 | 1905 |
| NAYY-J |
| 4 | 3 x 25.0 | re | 23.7 | 210 | 768 |
| 2 | 3 x 35.0 | re | 25.8 | 291 | 932 |
| 1 | 3 x 50.0 | sm | 30.9 | 404 | 1294 |
| 1 | 3 x 50.0 | sm | 27.8 | 404 | 994 |
| 2/0 | 3 x 70.0 | sm | 31.2 | 584 | 1250 |
| 3/0 | 3 x 95.0 | sm | 35.8 | 809 | 1675 |
| 4/0 | 3 x 120.0 | sm | 38.0 | 1023 | 1964 |
| 300mcm | 3 x 150.0 | sm | 41.8 | 1257 | 2365 |
| 350mcm | 3 x 185.0 | sm | 45.7 | 1579 | 2913 |
| 500mcm | 3 x 240.0 | sm | 51.1 | 2071 | 3693 |
| 1 | 3 x 50.0+25 | re+re | 30.5 | 462 | 1310 |
| 1 | 3 x 50.0+25 | sm+rm | 31.2 | 474 | 1158 |
| 2/0 | 3 x 70.0+35 | sm+rm | 36.0 | 684 | 1537 |
| 3/0 | 3 x 95.0+50 | sm+rm | 40.2 | 944 | 1971 |
| 4/0 | 3x120.0+70 | sm+rm | 43.2 | 1218 | 2346 |
| 300mcm | 3 x 150.0+70 | sm+rm | 48.0 | 1452 | 2839 |
| 350mcm | 3 x 185.0+95 | sm+rm | 52.3 | 1848 | 3470 |
| 500mcm | 3x240.0+120 | sm+rm | 58.7 | 2412 | 4399 |
| 750mcm | 3x300.0+150 | sm+rm | 64.3 | 3008 | 5321 |
| 4 | 4 x 25.0 | re | 25.8 | 281 | 912 |
| 2 | 4 x 35.0 | re | 28.2 | 388 | 1111 |
| 1 | 4 x 50.0 | se | 31.2 | 539 | 1265 |
| 2/0 | 4 x 70.0 | se | 36.0 | 779 | 1658 |
| 3/0 | 4 x 95.0 | se | 40.2 | 1079 | 2139 |
| 4/0 | 4 x120.0 | se | 43.2 | 1364 | 2524 |
| 300mcm | 4 x 150.0 | se | 48.0 | 1676 | 3123 |
| 350mcm | 4 x 185.0 | se | 53.7 | 2105 | 4002 |
| 500mcm | 4 x 240.0 | se | 58.7 | 2762 | 4848 |
| 750mcm | 4 x 300.0 | se | 64.3 | 3452 | 5882 |
| 4 | 5 x 25.0 | re | 28.1 | 351 | 1072 |
| 2 | 5 x 35.0 | re | 30.9 | 485 | 1326 |
| 1 | 5 x 50.0 | re | 35.7 | 653 | 1771 |
| 4 | 5 x 25.0 | rm | 30.4 | 360 | 1183 |
| 2 | 5 x 35.0 | rm | 33.0 | 497 | 1456 |
| 1 | 5 x 50.0 | rm | 38.1 | 673 | 1919 |
| 2/0 | 5 x 70.0 | rm | 43.3 | 974 | 2452 |
| 3/0 | 5 x 95.0 | rm | 49.8 | 1349 | 3257 |
